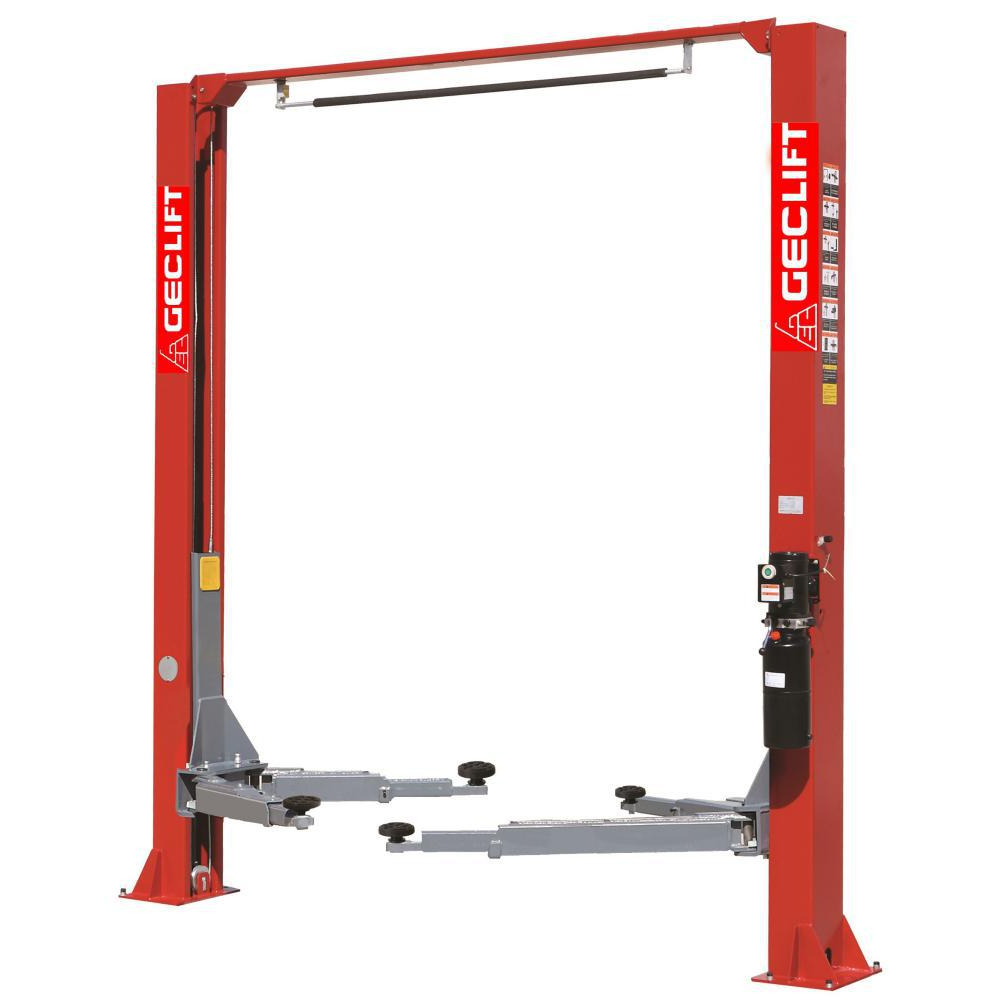

كوريك 2 عمود جي اي سي 4 طن وصلة علوية GEC.LIFT/QJ-Y-2-40D

Features: 4000KG lifting capacity. 2000mm lifting height with a standard truck adapter. Double lock release, convenient to release the column. Double S shape column (8 times dending), it bears more strength than the old design 6 times bending. Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity. Baseless design for easy movement of maintenance equipment under the raised vehicle. The rubber-protected overhead bar switches off the power system when the vehicle roof touches it. CE certificated by the UK. Technical details: Lock/Release System: Double Point Lifting Capacity: 4000kg(9000lb) Lifting Height: 2000mm(70.9") Width Between Columns: 2800mm(110") Arm Reach Front: 710-1050mm(27.9”-41.3") Arm Reach Rear: 760-1200mm(29.9”-47.2") Concrete Thickness: 150mm(5.9") Limit switch height: 3440mm(135.4”) Lifting Time: 50s Motor Power: 2.2kw(3HP) Wight: 610Kg
