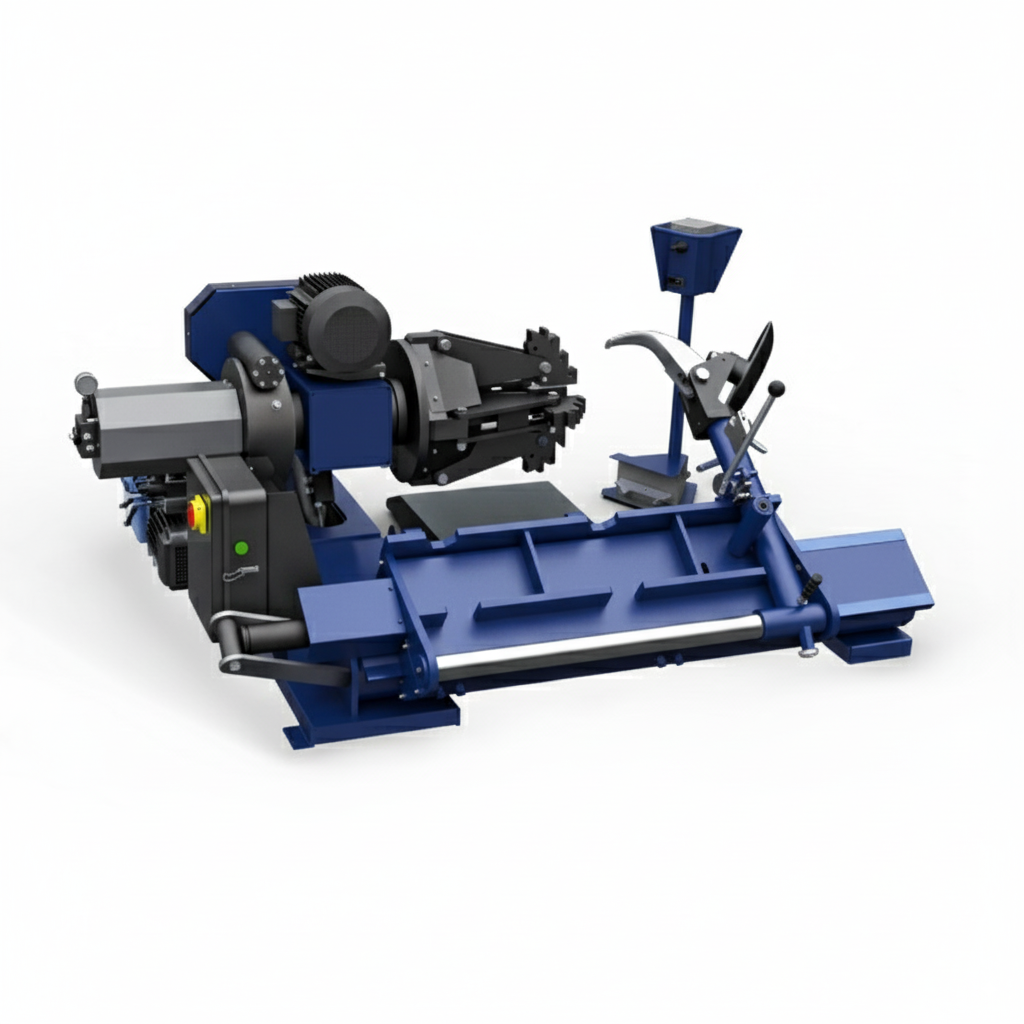

ماكينه فك وتركيب كاوتش نقل ثقيل ومعدات اتوماتيك ماركة اورلانديني ايطالي موديل Truck Pro 590D مقاس 56 بوصة 3 فاز

Simple configuration, firm and durable design, continue the high-performance feature of the 590 series, simplified operation mode, increase the interaction between the operator and the product. - Adopt hydraulic control system , rim clamping reliable, moving stable. Hydraulic stations adopted imported components, with stable performance. - Meet CE requirements, totally safe during operation. - The lifting arm oil cylinder is center support. - Movable operating stations can be fully observed during operation to prevent danger by misoperation. - The gearbox is made of aluminum alloy die casting, which is lightweight, has a beautiful appearance, is high intensity, and has good sealing performance. - The electric cabinet adopted CE-level protection standards. - The lifting arm and the base are made of strengthened and thickened metal, with high intensity. Technical details: - Rim Diameter: 14” - 46” inch - Rim range with extension: 46 - 56” inch - Rim width: 1100 mm - Max wheel diameter: 2200 mm - Hydraulic Power: 130 - 150 bar - Hydraulic Station Motor Power: 1.5kW 380V/3PH 50HZ - Main Shaft Motor Power: 2.4kW/380V/50HZ/3P - Noise: ＜75dB - Net Weight: 891 KG
