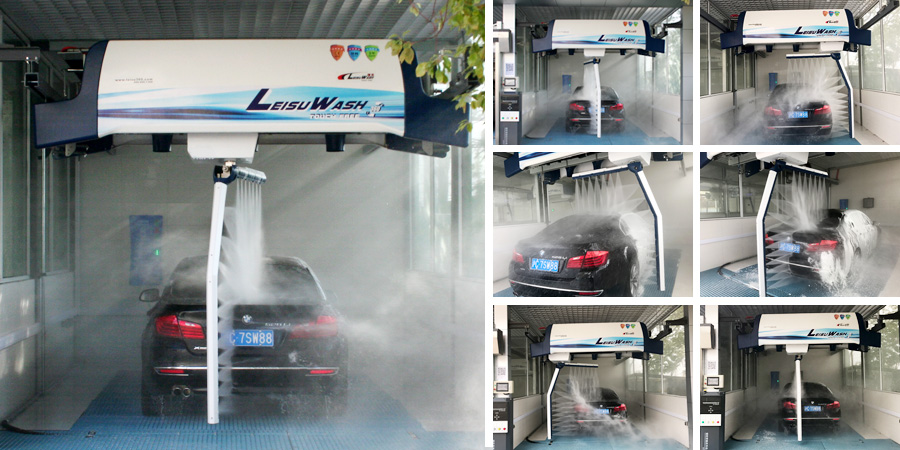

Leisuwash 360 Standard Automatic Touchless Car Wash System

Key Features
Intelligent unmanned systems, self-service card payment system.
Smart 360 technology.
Intelligent chemical mixing system.
Innovative suspension system non-resistance rails.
Unique embedded fast air drying system.
Digital voice security alarm system.
Faulty self-checking system.
One key anti-frozen system

1. High-pressure pre-wash for under chassis and wheels.
Equipped with a unique chassis and fan hub flush function, 90 bar high-pressure water can effectively remove dirt on the vehicle chassis, body sides, and wheels.

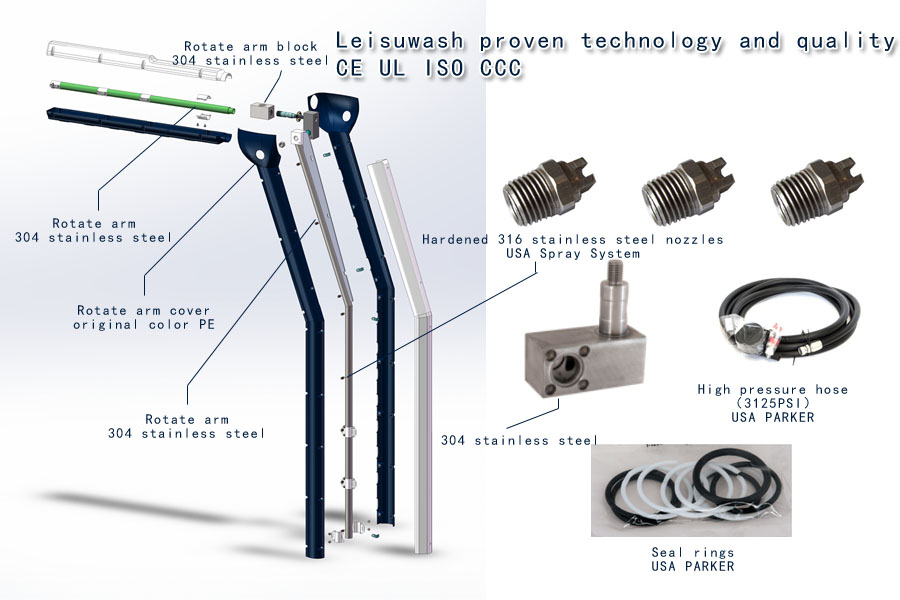

2. Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.
100% accurate measurement with adjustable ratio. only 20~50ml pre-soak consumption for washing one car through a high-precision chemical mixing system saves material and is cost-efficient.

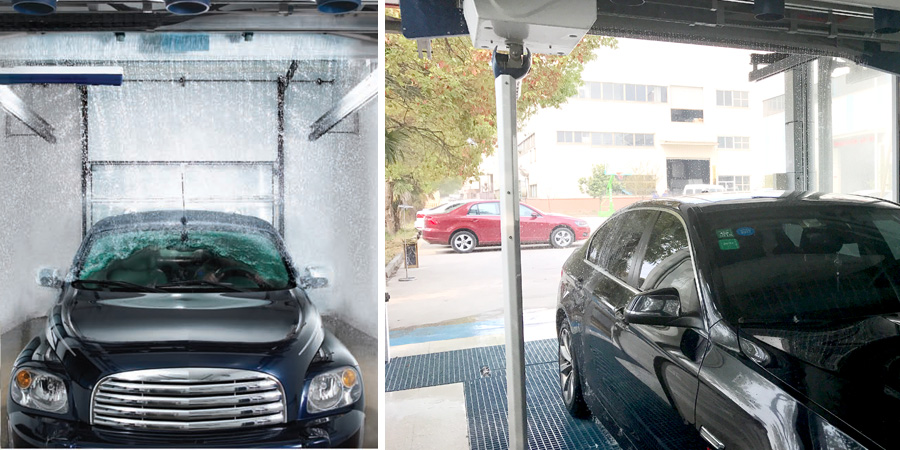

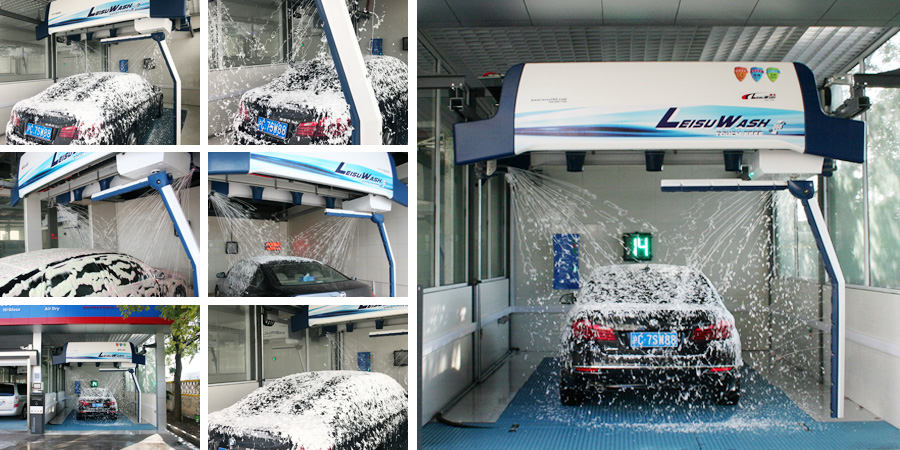

3. Smart 360 rotate arm, Flush car body 360° with high-pressure water.
Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatically detects the length and width of the vehicle

Technical details:
Main machine size: 3500mm*1200mm*900mm
Water pump size: 1200mm*700mm*600mm
Chemical mixing system size: 800mm*450mm*1400mm
Rail length: 7500mm

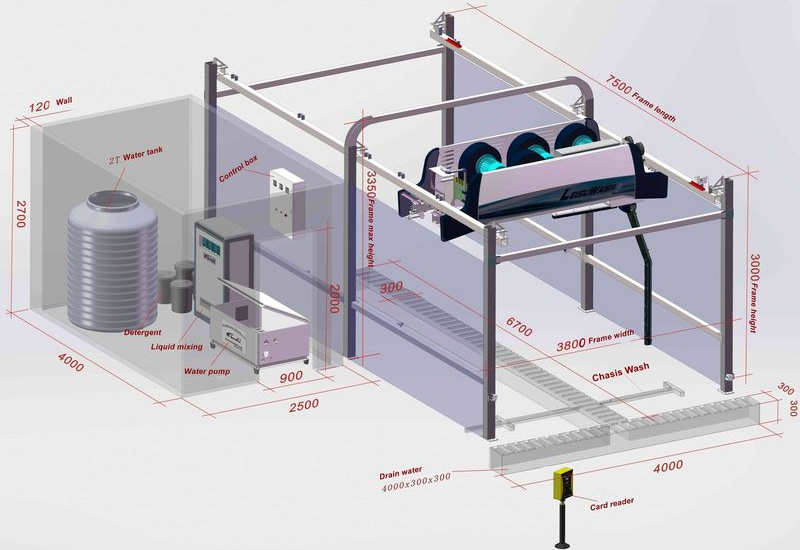

Min Mounting Dimensions ( length*width*height ): 7600mm*3850mm*3350mm
Max car wash size ( length*width*height ): 5900mm*2900mm*2050mm
Power Requirement: 380V/22Kw, 50Hz/60Hz
Air switch: 80A air switch
Total power: 45kw

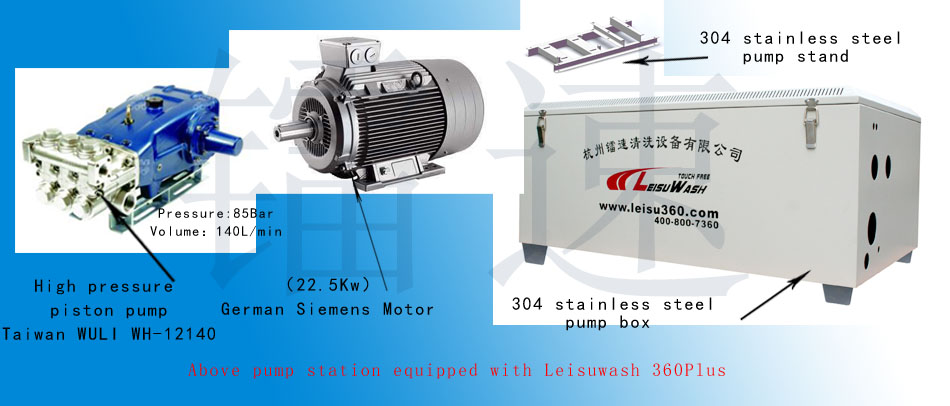

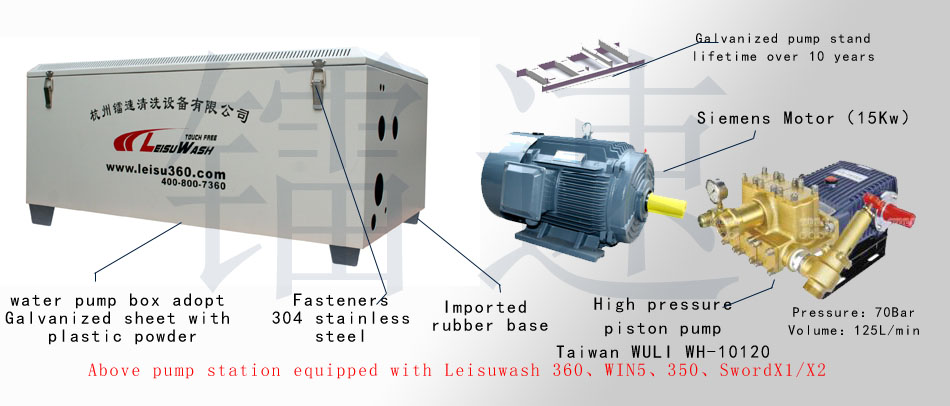

Water pump motor power: 15~22Kw

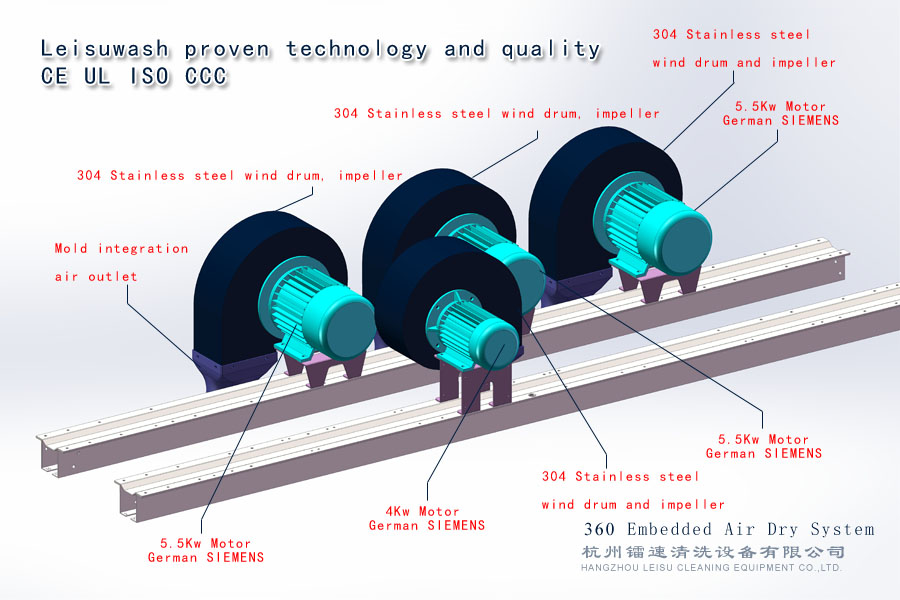

Air fan motor power: 20.5Kw / full pressure 11000 Pa/air volume 23000 cubic meters / h

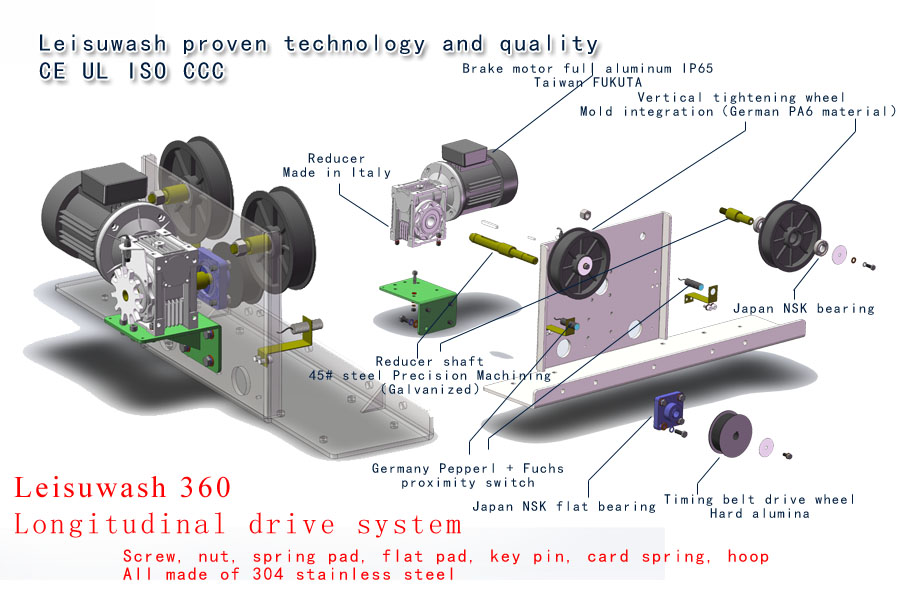

Longitudinal motor power: 0.37Kw step-less frequency control

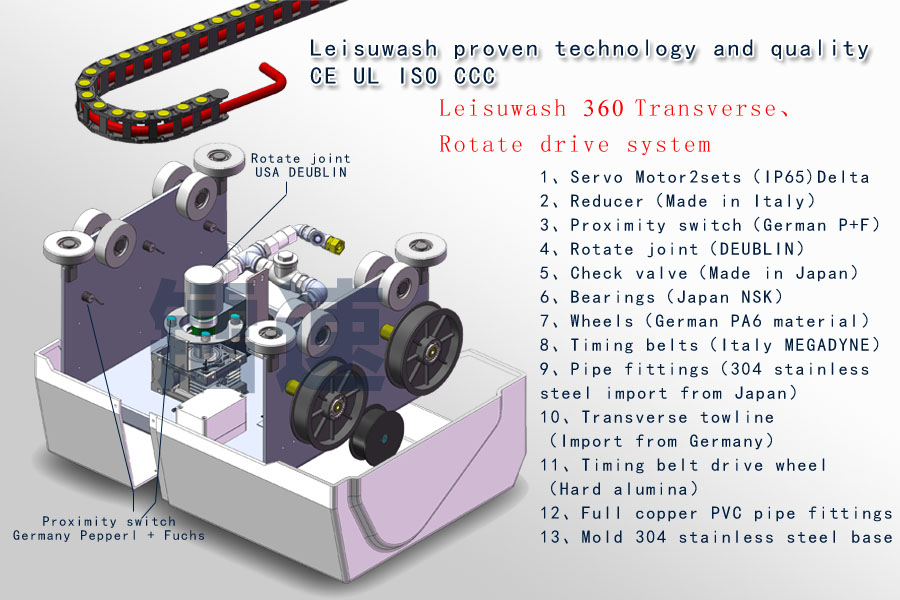

Transversal motor power: 0.75Kw servo drive system
Rotary motor power: 0.75Kw servo drive system
Chemical mixing system motor power: 1.5kw

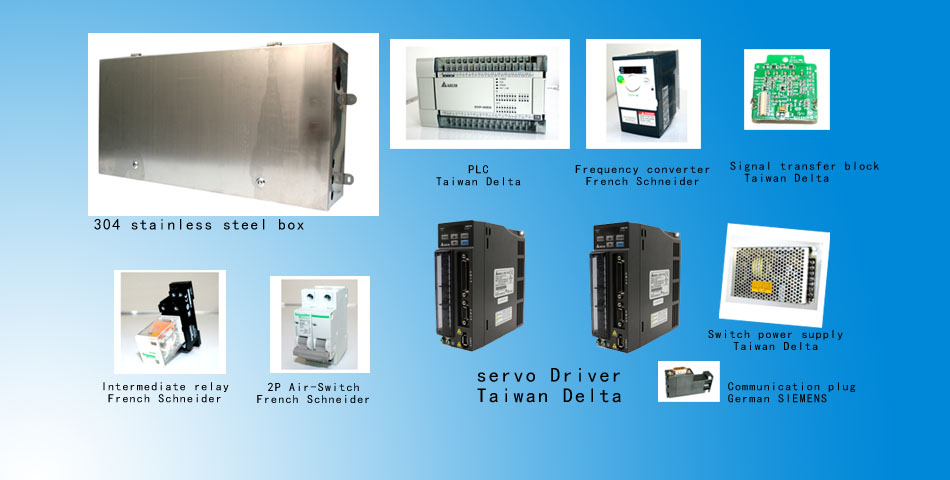

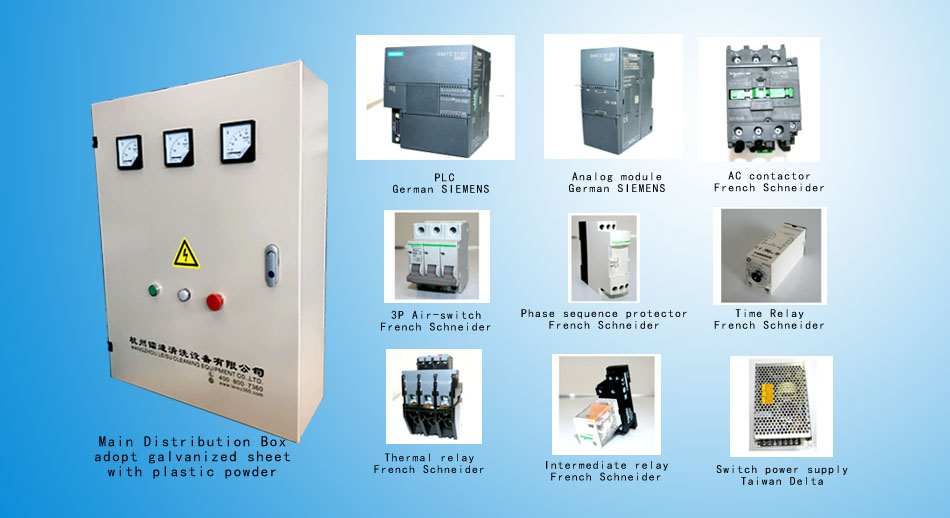

Central processor: Industrial PLC embedded central processor + dual-core system
Drive System: Servo drive system
Detection system: Smart three-dimensional monitoring system

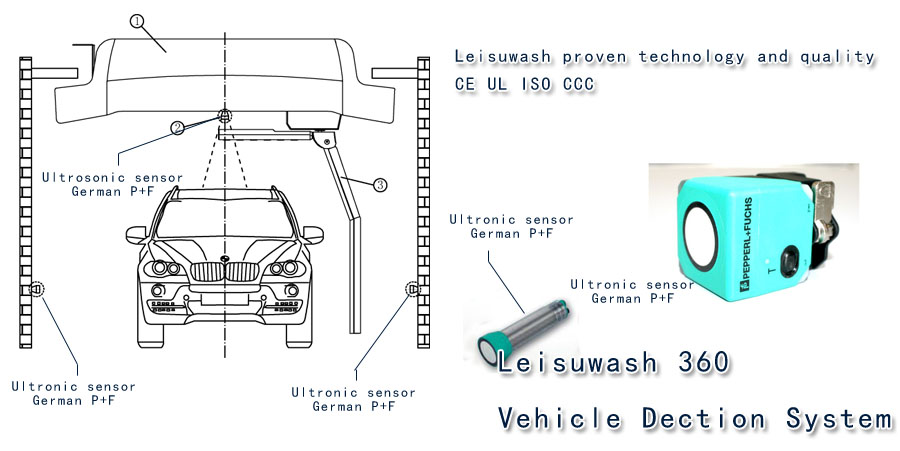

Sensor System: Ultrasound+ Absolute value of the digital encoder
Speed: 360 wash 28 seconds, energy saving 60%
Pre-soak consumption: 20~50ML/Car ( Depends on chemical proportioning )
Polish shampoo consumption: 50~100ML/Car
Crystal wax consumption: 20~40ML/Car
Water consumption: Standard wash 100L/car, Fine wash 150L/car
Electricity consumption: Standard wash 0.52 KW·H/car, Fine wash 1 kW·H/car
