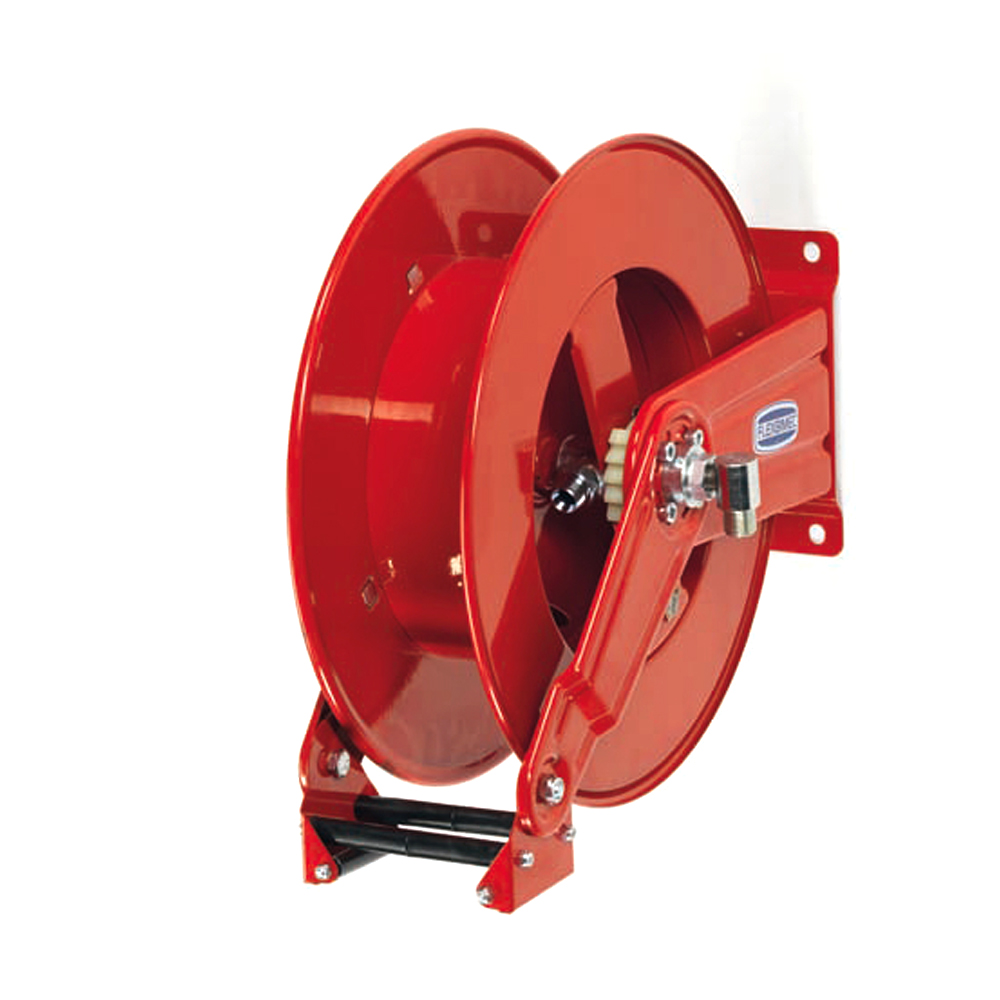

FLEXBIMEC 9096 Automatic Hose Reel 15 Meters - 3/4 Inch / 12 Meters - 1 Inch

Description:

The FLEXBIMEC 9096 Automatic Hose Reel is a spring-driven, self-retracting reel designed with adjustable twin-spring arms and built from strong painted steel for heavy-duty applications. It supports hoses up to 15 meters in 3/4” and 12 meters in 1”, offering smooth operation and long-lasting durability.

Supplied without hoses, this reel is highly versatile and can be used with hoses for oil, diesel, compressed air, and water. Thanks to its inlet swivel joint and interchangeable galvanized steel hose connection adapter, it ensures a safe and reliable fluid transfer system.

Technical details:

• Max working pressure: 100 bar

• Max hose length: 15 m (3/4”) / 12 m (1”)

• Maximum hose size: 1”

• Connection threads IN-OUT: M1” – F1”

• Internal swivel joint: 20 mm

• Material: Painted steel

Made in Italy
