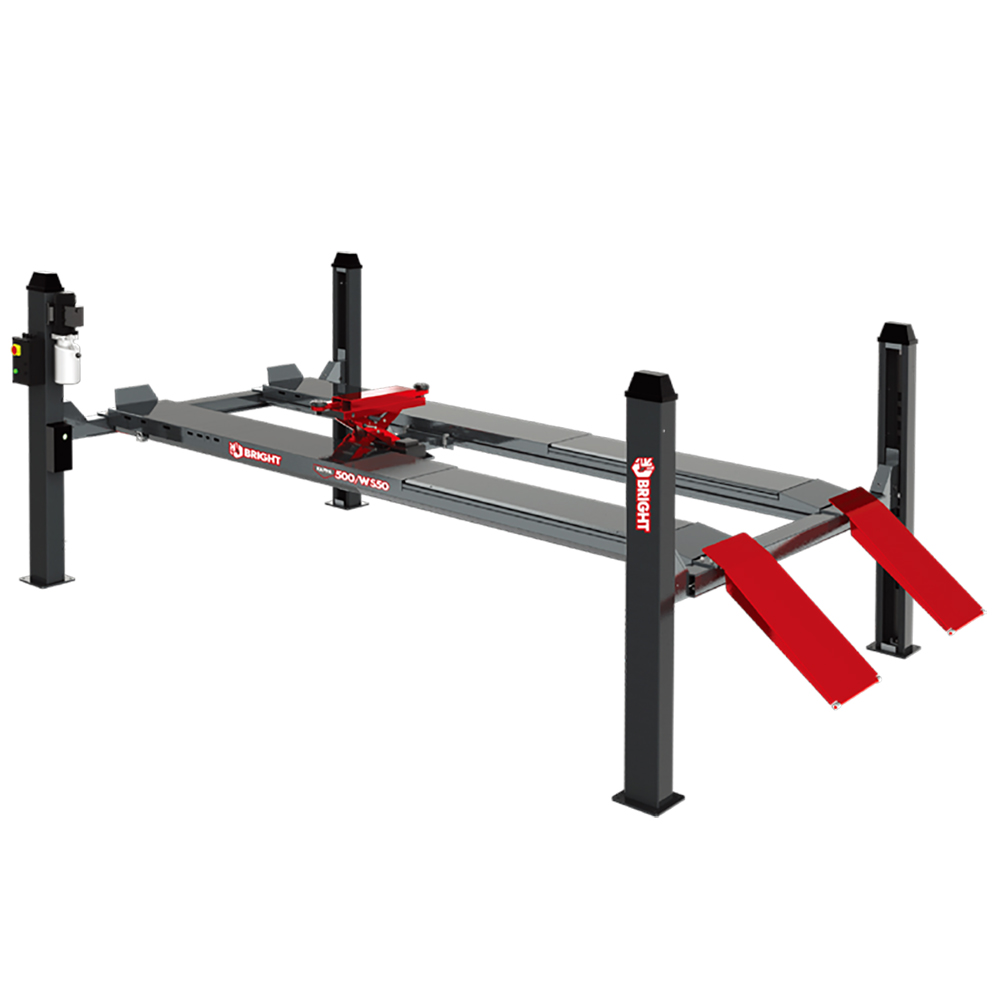

BRIGHT KAPPA500/WT50 5 Ton 4-Post Alignment Lift + Electric Control Panel and Pneumatic Lock With Jacking Beam

Description:

Highlights:

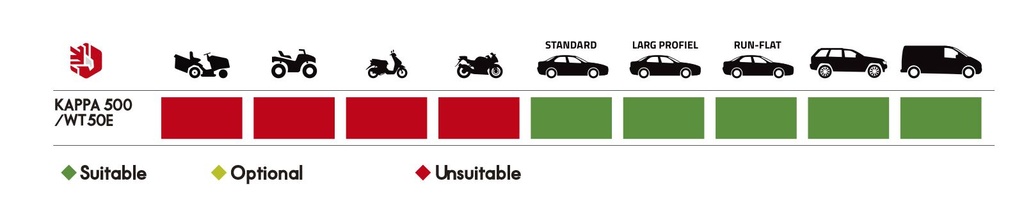

• Extended platform – suitable for a wider range of wheelbase models.

• Pneumatic unlocking design with a 4-point locking system for faster and easier operation.

• Hydraulic power unit equipped with an oil flow adjustment device to control descending speed.

• Steel rope breakage protection device for enhanced safety.

• Adjustable runway spacing to fit vehicles with different wheel widths.

• Multiple spacer blocks included for various wheelbase and turntable sizes.

• Jacking beam (optional) with independent lifting and lowering operation.

• 24V safe control system for reliable operation.

• Tested & approved – 115% dynamic load and 150% static load tests passed.

Technical Details:

• Lifting capacity: 5000KG (11,000 lbs)

• Lifting height: 245MM (9-1/2") – 1800MM (74-3/4")

• Jacking beam height: 50MM (2") – 450MM (17-3/4")

• Jacking beam capacity: 3000KG (6,600 lbs)

• Air pressure: 6–8 Bar
