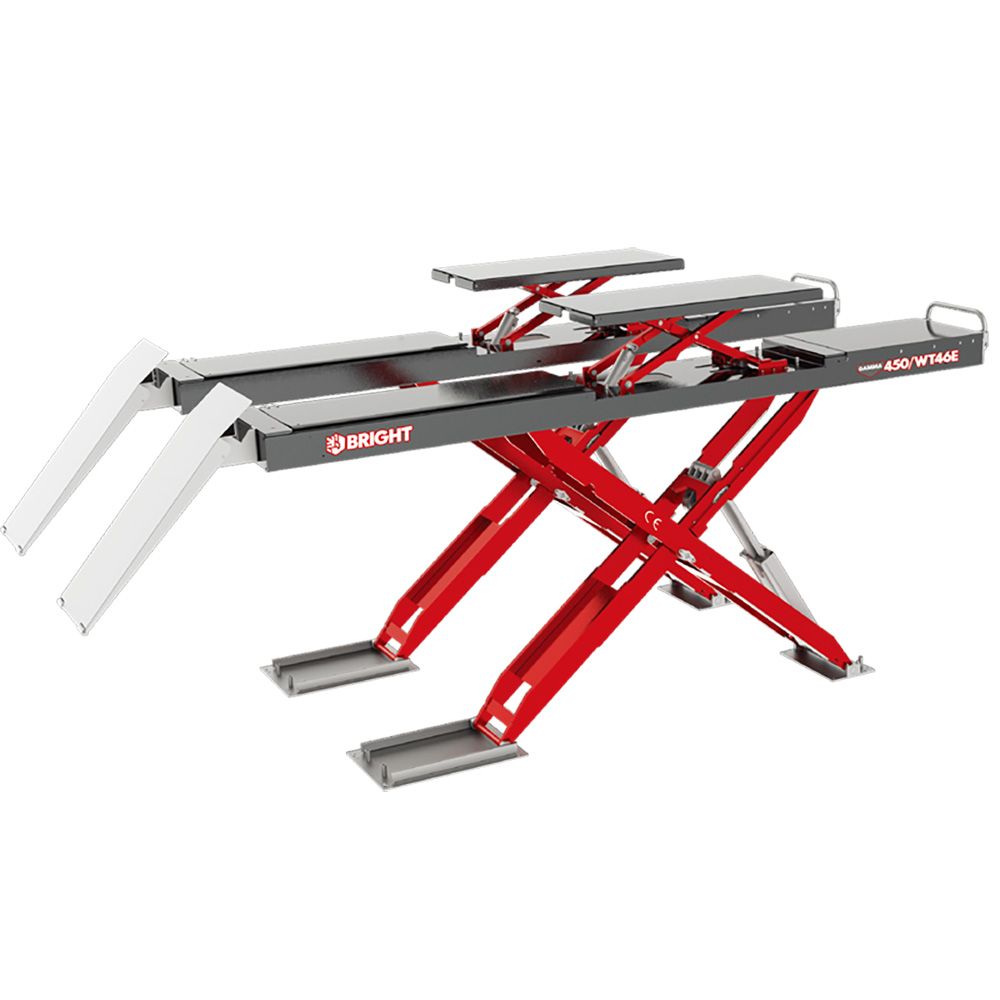

BRIGHT 4.5 Ton Ultra-Thin Wheel Alignment Scissor Lift GAMMA 450/WT46E

Description:

The BRIGHT GAMMA 450/WT46E is an ultra-thin, surface-mounted scissor lift engineered for professional wheel alignment tasks, with a lifting capacity of 4500 kg. Built with 16Mn steel support arms, it ensures stable and reliable lifting performance. Its 2070 mm maximum height and 685 mm widened platform offer enhanced ergonomics and stability, making it easier for vehicles to get onto the platform.

It comes equipped with a secondary lifting device as standard, suitable for various wheelbase sizes. Powered by a 6-cylinder driving mode and a mechanical safety lock, it provides optimal safety and performance. Additional features include one-key hydraulic leveling, infrared synchronization detection to prevent uneven platforms, an explosion-proof hydraulic valve, and a 24V safe operating voltage. Each unit passes rigorous 120% dynamic load and 150% static load tests for maximum durability.

Technical Details:

• Main Lifting Capacity: 4500 kg

• Lift Table Capacity: 3000 kg

• Max Lifting Height: 2070 mm

• Min Height: 230 mm

• Lift Table Height: 400 mm

• Platform Length: 4600 mm

• Total Length: 6110 mm

• Platform Width: 680 mm

• Platform Spacing: 900 mm

• Motor Power: 3.5 kW

• System Pressure: 250 Pa

• Weight: 2880 kg
