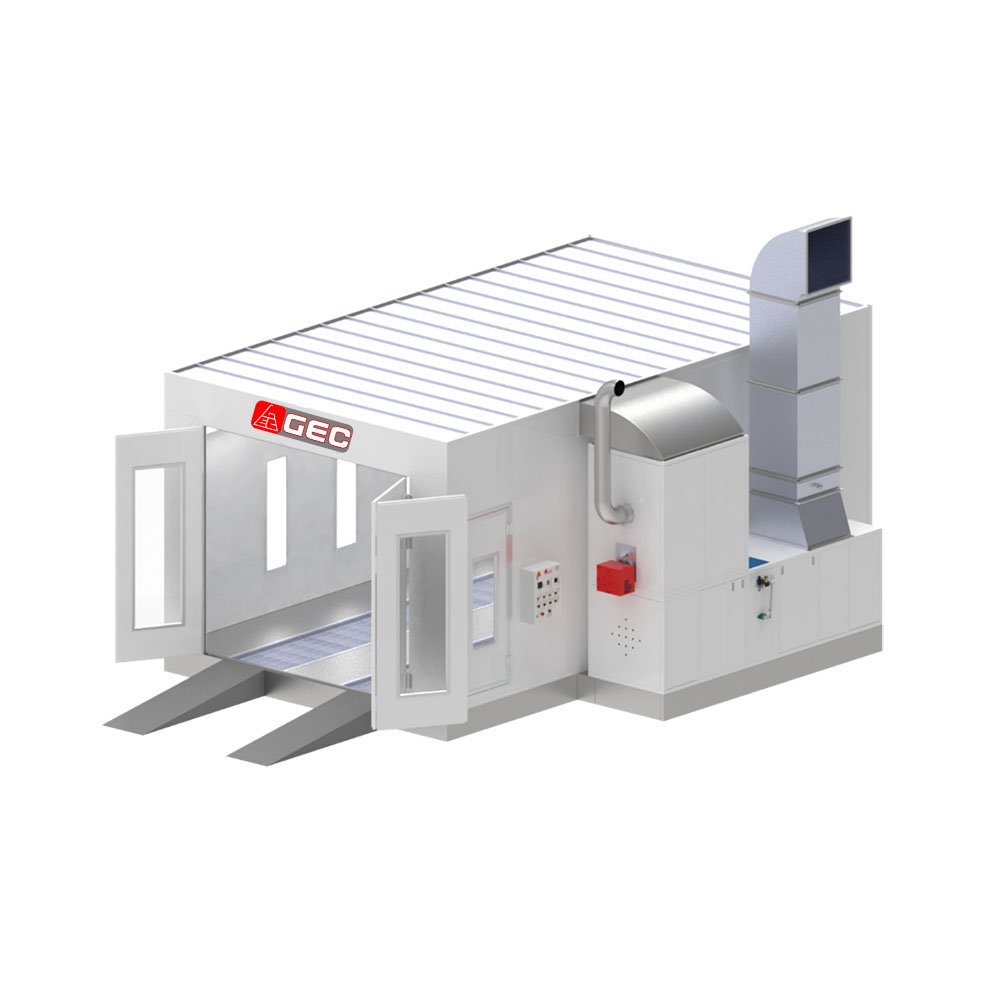

فرن دوكو دهان سيارات 6.9*4*2.8 متر 380 فولت GEC/C702

Features: LOW NOISE: Cabins with low acoustic emission (<75 dB, 73 dB on average). LED LIGHTS: Our cabins include high-brightness LED lighting (+1000 lux) DOUBLE TURBINE: Limits vibrations at start-up and throughout operation, creating uniform airflow and eliminating turbulence DOUBLE GLAZING: Double glazing with air chamber prevents heat loss, increasing temperature stability LAMINATED GLASS: Laminated glass throughout the facility COMPONENTS FROM TOP BRANDS: Frame made entirely with components from top European brands HIGH MODULARITY: Flexible installations to fit into any space configuration to meet specific customer needs EUROPEAN STANDARDS: Our products are 100% manufactured according to the CE standards SPARE PARTS: Genuine spare parts to ensure optimal operation throughout the life of the equipment SPECIALIZED TECHNICAL SERVICE: GEC own technical and after-sales service. Technical details: Dimensions: LENGTH / 6.9 WIDTH / 4.000 HEIGHT / Outside 3.400 mm -- Inside 2.650 mm Frontal Door: 3-wings / Width and height of passage / 3.000 x h.2.600 mm Inspection windows / Shutters supplied with inspection windows and safety glasses / 550 × h.1800 mm Personnel door / Width and height of passage / 800 x 2.000 mm. Air Generator Unit: Airflow: 24/25.000 m³/h Motor power: 7,5 kW Average air speed into the empty cabin: 0,25 m/s Inside cabin noise level: <75 dB.73 dB average Thermal power: 180.000 Kcal/h (200 KW) Thermal equipment: Burner consumption: Diesel (gasoil) Recycling: YES Max. temp. in drying phase: 80º Air Extractor Unit: Airflow: 24/26.000 m³/h Motor power: 7,5 kW Inside cabin noise level: <75 dB.73 dB average Lighting: No. of tubes/Lux: - Upper lights: 8 fixtures x 4 pcs = 32 pcs Led lighting; - Side lights: 8 fixtures x 2 pcs = 16 pcs Led lighting Intensity: +950 Lux Floor Dimensions: 6.900 x 4000 x h. 300 mm. Loads (Punctual/Distributed): 650 Kg per wheel print Filters (Type): Paint-Stop / EU3 Power Requirements: Power: 16 kW approx. Tension: 400V-50Hz (3PH+N+PE)
