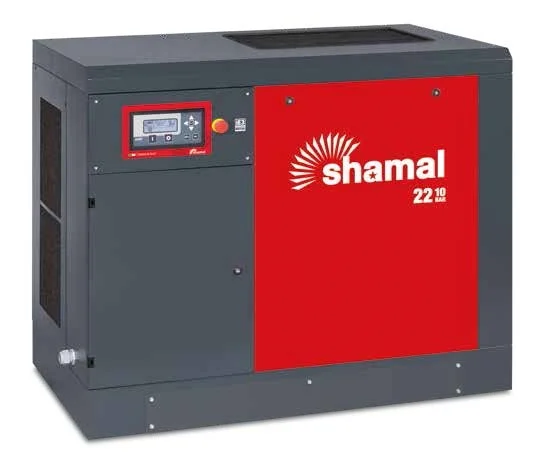

SHAMAL STORM 22-10 Belt-Driven Rotary Screw Compressor 10Bar 30HP 3000L/Min (380V)

Description:

The 30HP Solution for Uninterrupted Industrial Power.

This is the SHAMAL STORM 22-10 , a high-performance belt-driven rotary screw compressor specifically engineered for continuous duty in very hard operating conditions. It is the ideal answer to the needs of small and mid-sized companies, as well as large-scale industry, where compressed air is a main source of energy.

Delivering a constant 3000 L/min of free air at 10 Bar , this 30 HP (22 kW) unit guarantees supreme product reliability and flexibility of use. The STORM series is designed with special attention to energy consumption and low operating costs. It features an efficient POLY-V belt drive that ensures significantly lower power losses, lower maintenance, and three times longer service life compared to standard "V" type belts.

Despite its heavy-duty performance, it maintains a remarkably quiet noise level of only 68 dB(A). The machine is equipped with a premium FS50 TF air-end and an advanced ETIV backlit multi-function LCD display to easily monitor operating pressure, temperature, and maintenance hours.

Built for easy maintenance, its compact size fits easily into any workplace , while the wide front and rear paneling grants ease of access, reducing inspection and maintenance time. 100% designed and made in Italy , this compressor is a testament to high-quality manufacturing and long-lasting durability.

Technical Details:

• Power: 30 HP / 22 kW

• Pressure: 10 Bar / 145 p.s.i.

• Air Flow: 3000 L/min

• Drive Type: POLY-V Belt-Driven

• Air-end Model: FS50 TF

• Controller: ETIV Multi-function LCD Display

• Sound Level: 68 dB(A)

• Electricity: 3PH / 380V (from product title)

• Weight: 419 kg / 923 Lbs

• Dimensions: 136x83x113 cm

• Origin: Made in Italy
