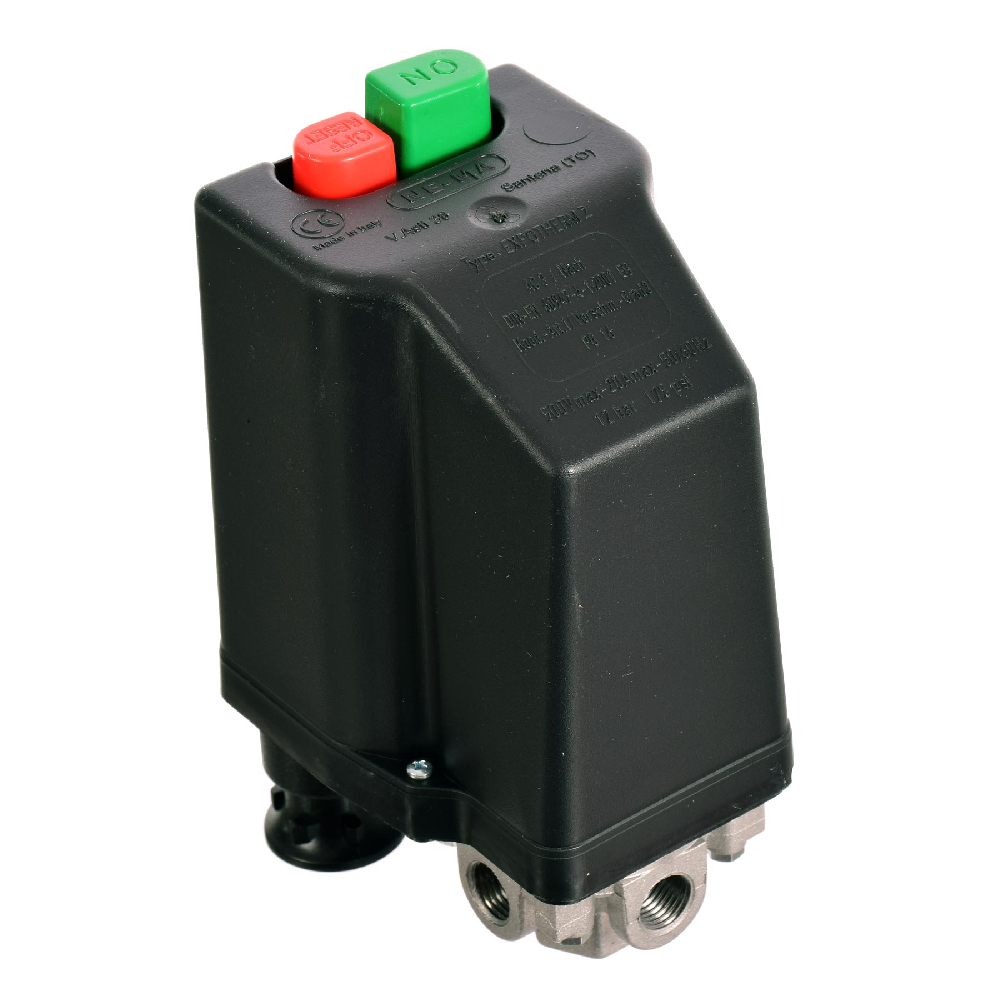

NE-MA Air Compressor Pressure Switch With Integrated Overload 10/16 amp 380V 12Bar

Description:

The NE-MA Air Compressor Pressure Switch with Integrated Overload 10/16 Amp 380V 12Bar is a premium Italian-made pressure control switch designed for three-phase air compressors. It combines a pressure switch and overload protection in one compact unit, ensuring safe and reliable operation for heavy-duty applications. Perfect for car washing centers, detailing shops, and car care facilities, it helps maintain stable air pressure while preventing motor damage due to electrical overload.

Technical Details:

• Type: Air Compressor Pressure Switch with Overload

• Model: NE-MA 380V / Overload 10–16 Amp

• Voltage: 380V – Three Phase

• Frequency: 50/60 Hz

• Max Cut-Out Pressure: 12 Bar

• Min Working Pressure: 4 Bar

• Poles: 3 (N.C.)

• Overload Range: 10–16 Amp

• Protection Class: IP42

• Cable Glands: 2×Pg13 (Ø13mm)

• Country of Origin: Italy
