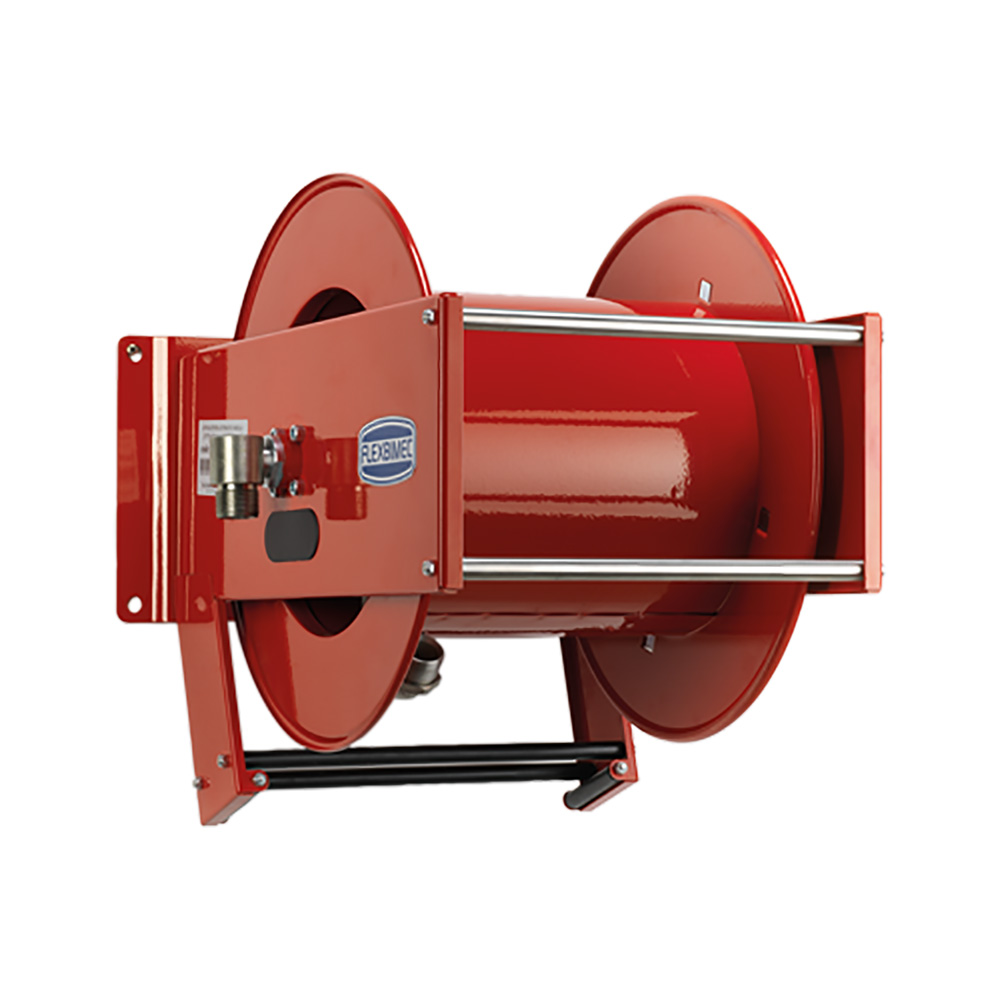

FLEXBIMEC 9070 Automatic Hose Reel 30 Meters - 3/4 Inch / 20 Meters - 1 Inch

Description:

Flexbimec 9070 is a professional-grade automatic spring rewind hose reel designed with painted steel and adjustable twin-spring arms. Built for durability and efficiency, it can accommodate hoses up to 30 m (3/4”) or 20 m (1”). Ideal for oils, diesel, compressed air, and water, it ensures smooth hose management with reliable performance in demanding environments. The reel is supplied without hoses and includes a galvanized steel hose connection adapter assembly.

Key Features:

• Automatic rewind, spring-driven mechanism.

• Adjustable arms with twin spring system.

• Suitable for oil, diesel, compressed air, and water hoses.

• Painted steel construction for durability.

• Supplied without hose (adapter included).

• Easy hose replacement thanks to interchangeable adapter.

Technical Details:

• Material: Painted steel

• Max Working Pressure: 100 bar

• Connection Threads IN-OUT: 1" (M) – 1" (F)

• Internal Diameter Swivel Joint: 20 mm

• Max Hose Diameter: 1"

• Max Hose Length: 30 m (3/4") – 20 m (1")

• Dimensions: 450 × 540 × 600 mm

• Spool Width: 300 mm

• Weight: 38 kg

• Made in Italy
